High Performance D28 3D Welding Table for Multi-Shift Factory Production

Supply Ability : 500 units/month

Hole Diameter : Φ28mm

Grid diagonal tolerance : ≤0.05mm/m

Model Number : D28

Flatness Accuracy : ≤0.1mm/1000mm

MOQ : 1 PCS

Delivery Time : 15-25 work days

Plate Thickness : 25mm (Standard); 28mm / 30mm Optional

Payment Terms : D/A,L/C,D/P,T/T

Grid Pitch : 100mm × 100mm

Surface Treatment : Nitriding

Price : 500-1500 USD

Machining Surface : 5-sided fully machined

Material Option : S355J2+N High Strength Steel / HT300 Grey Cast Iron

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Brand Name : WUXI LEMAR

Customization : Custom size / height available

Contact Now

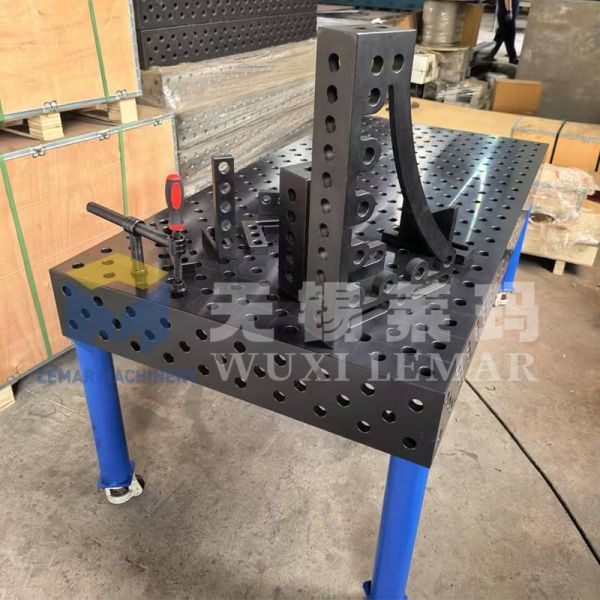

High Performance D28 3D Welding Table for Multi-Shift Factory Production
High Performance D28 3D Welding Table for Multi-Shift Factory Production

Our High Performance D28 3D Welding Table for Multi-Shift Factory Production delivers reliable high rigidity and long-lasting precision dedicated to multi-shift industrial fabrication. With five-sided machining and standardized D28 hole system, the nitrided work surface resists weld spatter adhesion and impact. Ideal for chassis, construction machinery and heavy steel part production, this 3D welding table enables fast fixture rearrangement, supports unlimited splicing and works well with automated robotic welding cells. Maximize workshop efficiency and reduce batch production rework for your continuous operation.

High Performance D28 3D Welding Table for Multi-Shift Factory Production High Performance D28 3D Welding Table for Multi-Shift Factory Production
D28 3D Welding Table Specifications
Item Specification Details
Hole System D28, Φ28 mm hole, 100 mm × 100 mm grid pitch
Machining Surface 5-sided fully machined (Top + Four Vertical Sides)
Standard Working Height 800 mm (Custom 700/750/900 mm available)
Available Standard Sizes (L × W, mm) 1000×1000 / 1200×1200 / 1500×1000 / 2000×1000 / 2000×1500 / 3000×1500 / 4000×2000
Custom dimensions supported
Worktop Material Option 1: S355J2+N High Strength Steel
Option 2: HT300 Grey Cast Iron
Plate Thickness 25 mm (Standard); 28 mm / 30 mm Heavy-duty optional
Flatness Tolerance ≤0.1 mm / 1000 mm
Hole Position Tolerance ±0.03 mm
Verticality of Side Face ≤0.1 mm / 200 mm
Standard Leg Accessory Heavy-duty support legs + adjustable leveling feet
Core Advantages
  • Long-term precision retention: Resistant to deformation over time. The raw casting undergoes a dual stress-relief process—annealing followed by natural aging—enabling it to withstand 16-24 hours of continuous heat exposure and repeated clamping impacts daily. The table surface remains flat during long-term batch production, ensuring consistent product dimensions.
  • Wear-resistant nitrided surface: Significantly reduced grinding and maintenance. The nitrided hardened surface prevents welding spatter from adhering firmly, reducing the cleanup workload for workers. Unlike standard painted tables, this system supports years of continuous production without the need for frequent surface refinishing.
  • Modular, flexible tooling: Rapid production changeovers. Compatible with a full range of standard accessories: locating pins, L-shaped supports, angle blocks, quick-acting clamps, and support blocks. No need to weld custom fixtures for new products; tooling can be reconfigured in 15-40 minutes, making it ideal for factories handling high-mix, rotating production schedules.
  • 3D, five-sided clamping: Single-setup positioning for complex workpieces. Chassis, frames, heavy machinery structural components, and box-type parts can be secured both laterally and vertically simultaneously. This minimizes the need to flip the workpiece and boosts output on multi-shift production lines.
  • Universal system: Globally interchangeable accessories. The D28 welding table adheres to mainstream European and American standards for heavy-duty welding tooling. Fixtures are interchangeable with major international brands, simplifying spare part procurement for overseas factories.
  • High-rigidity structure: Minimizes welding deformation. Featuring a heavy-duty table surface and closely spaced reinforcing ribs, the system ensures minimal workpiece displacement during welding after clamping. This reduces rework rates and meets stringent quality control requirements for mass production.
Customer Reviews
High Performance D28 3D Welding Table for Multi-Shift Factory Production High Performance D28 3D Welding Table for Multi-Shift Factory Production
After-Sales Policy
Warranty Coverage

We provide 2 years warranty for the main body of the High Performance D28 3D Welding Table under standard operating conditions. The warranty covers manufacturing defects on table structure, machining accuracy and raw materials.

Items NOT Covered by Warranty
  • Damage caused by improper installation, unlevel placement and overloading
  • Deformation, pits or abrasion from heavy impact, hammer striking, free-falling heavy goods
  • Surface nitriding layer damage due to direct plasma cutting / flame cutting on the tabletop
  • Normal wear of clamping accessories, locating pins and adjustable feet
  • Damage from unauthorized modification, disassembly or poor daily maintenance
The High Performance D28 3D Welding Table for Multi-Shift Factory Production delivers consistent precision and long service life for multi-shift heavy-duty fabrication.
Whether you need a single table or a whole robotic welding workstation setup, we are ready to offer tailored solutions.
Please contact us for catalog, pricing and further technical details. We look forward to your inquiry.
