Core Features
High Precision Flatness – Certified Accuracy You Can Trust
Every table is precision machined to ± 0.1mm/m flatness tolerance and inspected before shipment. No wobbly setups, no shimmed workpieces, no guessing. Square joints fit perfectly, parallel surfaces stay aligned, and every weld goes where it's supposed to. When precision matters, this table delivers.
Nitrided Surface – Harder, Lasts Longer, Cleans Easier
Professional nitriding treatment hardens the steel surface to 60+ HRC—3-5 times harder than untreated steel. The result: exceptional wear resistance, superior rust protection, and welding spatter that chips off cleanly with a simple chisel. A nitrided table stays accurate and looks better for years longer than a standard painted or ground table.

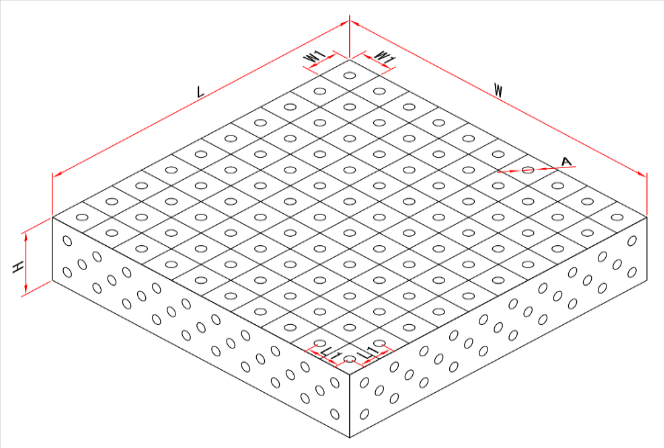

D28 Hole System – The Industrial Standard for a Reason
The 28mm diameter hole system with 100mm grid spacing is the European industrial standard—and for good reason. It accepts a massive range of heavy-duty clamping accessories, handles high clamping forces, and is compatible with most major fixturing brands. Drop in a bolt, slide on a bracket, and you're set up in seconds.
Modular Fixturing – Unlimited Setups, Zero Compromises
Why settle for a fixed table when you can have a modular one? Our D28 system works with hundreds of fixturing accessories—clamping bolts, angle brackets, stop blocks, V-blocks, quick-release pliers, riser blocks, and more. Weld tubes, frames, brackets, sheets, and custom profiles all on the same table. Set up once, weld perfectly, then reconfigure for the next job.
Solid Metal Construction – Built for Industrial Daily Use
This isn't a hobby table. It's a professional welding work table built from solid Q355 steel plate with heavy welded leg structure. Rigid, stable, and vibration-damping—exactly what you need for consistent, high-quality welding. Built to take daily industrial use and keep performing year after year.
Frequently Asked Questions
Q1: What does "high precision" actually mean for a welding table?
A: On our table, high precision means two things: ① Flatness of ±0.1mm per meter – that's roughly the thickness of a human hair spread across a meter. ② Hole positioning accuracy of ±0.1mm – every hole in the grid is drilled to exact position. Both are certified by inspection before the table ships. This level of precision ensures your fixturing is repeatable and your weldments come out accurate every time.
Q2: What is the D28 hole system?
A: D28 refers to the 28mm diameter hole system with 100mm grid spacing – the European industrial standard for 3D and modular welding tables. It's called "D28" because the hole Diameter is 28mm. This system is widely used because it handles heavy clamping forces, works with a huge range of available accessories, and is compatible across multiple manufacturers.
Q3: What size table should I get?
A: A good rule: buy the largest table your space and budget can comfortably handle. Most welders find they use every inch of table space they have. For general fabrication shops, 2000×1000mm is the most popular all-around size. For structural work or larger projects, 2400×1200mm or 3000×1500mm gives you more room. Tell us what you weld and we'll help you choose.
Q4: Does the table come with clamping accessories?
A: The table is sold as a standalone unit, but we offer complete D28 fixturing accessory packages – from basic starter sets to full professional kits. You can also buy individual accessories anytime. Contact us for package pricing and recommendations based on your work.
Q5: Can I visit your factory to see the tables in person?
A: Yes, we warmly welcome clients to visit our production facility. You can inspect raw materials, see the full production process including the nitriding line, check finished tables of all sizes, and verify flatness and surface quality on site.
Contact Information
Whether you run a small job shop or large structural fabrication plant, our high precision D28 nitrided welding table fits all heavy-duty welding scenarios. No more frequent table replacement or messy workpiece positioning.
Feel free to contact us for free technical consultation, size recommendation and exclusive package discount. We provide full after-sales technical support and global delivery service to help you boost welding quality effortlessly.
